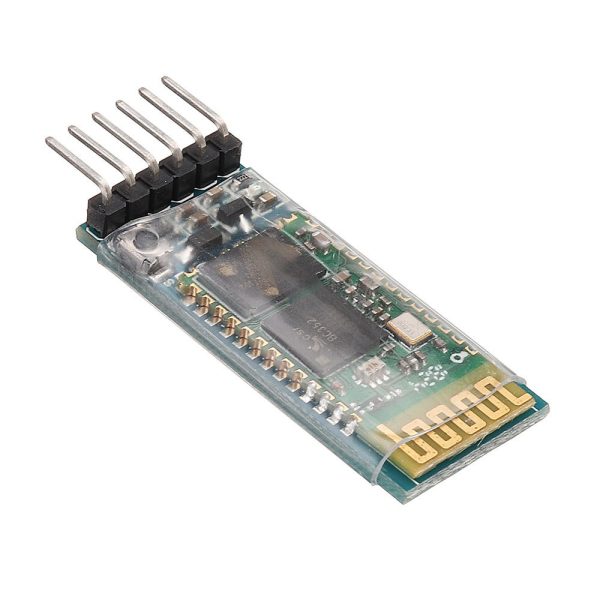

HC-05 BLUETOOTH MODULE POUR ARDUINO

• Note:It's HC-05 Bluetooth module Slave and master two in one module
• this module can be set to a transmitter or receiver, transmitter could pairing with receiver , receiver and receiver or
• transmitter and transmitter can't communication between, receiver could pairing with computers and cell phone
• Bluetooth , when buying, the default for receiver.
• Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards.
• Module working voltage 3.3 V.
• Potter default rate of 9600, the user can be set up.
• The core module size : 28 mm x 15 mm x 2.35 mm.
• Working current: matching for 30 MA, matching the communication for 8 MA.
• Dormancy current: no dormancy.
• Used for GPS navigation system, water and electricity gas meter reading system.
• With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment
• Commercial Series: Bluetooth module board Series
• With LED indicator light, use 150mA and 3.3V regulation chip.
• With VCC、GND、TXD、RXD foot for the Bluetooth
• With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
• Compatible with bluetooth master module"、slave module"or master-slave(whole) module.
• Input voltage: 3.3~6V
• Size: 1.55cm*3.98cm
• Note:
• Input power supply 3.3~6V, Prohibit more than 7V
• No "Automatically prevent power supply peversing func", so please correctly connect power supply
• We advise to install "Bluetooth master module"
• The "State" is output foot for LED status, when Bluetooth "Unconnected", output "Pulse" ; when Bluetooth "connected", output "High level", we can determine the states from "MCU"
• If only the board , No any "Bluetooth Function "
